Jul 24, 2025

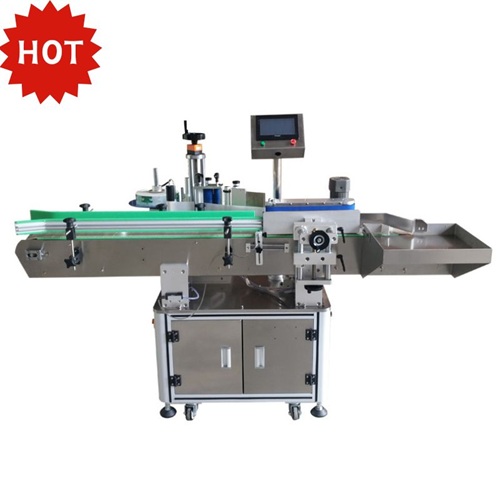

You use a round bottle positioning labeling machine to apply labels to bottles with high accuracy. The labeling machine uses sensors to detect bottles and labels, which helps prevent misalignment. Conveyors move bottles at a steady speed, and positioning mechanisms separate and orient bottles for proper labeling. The labeling machine’s motors and photoelectric sensors work together to feed labels and press them onto bottles smoothly. With this setup, you can reduce labeling errors and improve product quality.
Key Takeaways
Round bottle positioning labeling machines use sensors and conveyors to place labels accurately and quickly on bottles.
Key parts like the registration mark sensor, positioning mechanism, and label applicator work together to ensure labels stick straight and smooth.
Proper setup, including calibration and test runs, helps prevent errors and keeps labeling consistent and reliable.
Regular maintenance and troubleshooting, such as fixing misalignment or jams, keep the machine running efficiently and extend its lifespan.
Using these machines boosts production speed, improves label quality, and reduces labor costs compared to manual labeling.
Key Components of a Round Bottle Positioning Labeling Machine
A round bottle positioning labeling machine uses several important parts to make sure every bottle gets a label in the right spot. When you use round bottle sticker labeling machines, you can count on these components to work together for fast and accurate labeling.
Registration Mark Sensor
The registration mark sensor helps the labeling machine find the exact spot for each label. This sensor uses optical technology to detect special marks on self-adhesive labels. When a bottle passes by, the sensor quickly finds the registration mark and tells the round bottle sticker labeling machine when to start labeling. This keeps every label in the same place on each bottle, even if the bottles move quickly.
Conveyor System
The conveyor system moves bottles through the labeling machine. You place bottles on the conveyor, and it carries them at a steady speed. Some round bottle sticker labeling machines can handle up to 300 bottles per minute. The conveyor keeps bottles spaced evenly, so each one gets labeled without bumping into the next. This system is key for smooth and fast labeling.
Positioning Mechanism
The positioning mechanism lines up each bottle before labeling. It uses devices like guide rails, star wheels, or belts to hold bottles steady. Some round bottle sticker labeling machines use sensors and motors to adjust the bottle’s position. This makes sure the label goes on straight every time. If a bottle is not in the right spot, the labeling machine can fix it before applying the label.
Label Dispenser
The label dispenser feeds labels from a roll to the labeling head. In automatic round bottle sticker labeling machines, the dispenser uses sensors to peel and present each label at the right time. This part works with the registration mark sensor to make sure the label is ready when the bottle arrives. Automatic dispensers are best for high-speed labeling.
Label Applicator
The label applicator presses the label onto the bottle. It uses rollers, brushes, or even air to stick the label smoothly. Advanced round bottle sticker labeling machines use sensors to check the bottle’s shape and position. The applicator then uses just the right amount of pressure, so the label sticks flat and does not bubble or wrinkle.
Control Panel
The control panel lets you set up and monitor the labeling machine. You can adjust the speed, label position, and bottle spacing. Most round bottle sticker labeling machines have touch screens or buttons for easy use. The control panel also shows you how many bottles have been labeled and alerts you if there is a problem. With this panel, you can keep the labeling process running smoothly.
Tip: When you understand how each part works, you can set up your round bottle sticker labeling machine for the best results. Each component plays a role in making sure your labeling is fast, accurate, and reliable.
Operation Steps of the Labeling Machine
Operating a round bottle sticker labeling machine involves several precise steps. Each stage uses sensors, conveyors, and positioning systems to ensure high precision and consistent label application. Here is a detailed breakdown of the process from bottle entry to labeled bottle output.
Bottle Feeding
You start by preparing your bottles and labels. Make sure each bottle is clean, dry, and the right size for your labeling machine. Load the labels onto the dispenser and place the bottles on the in-feed conveyor. The turntable feeder rotates and moves bottles outward using centrifugal force. Sensors and PLCs monitor the flow, keeping bottles moving smoothly and preventing jams. Brush wheels and pneumatic devices help align bottles, while an outlet blockage detection system watches for any clogs. The regulating mechanism adapts to different bottle shapes and sizes, so your round bottle sticker labeling machine can handle a variety of products. This setup ensures a continuous, stable flow of bottles into the labeling machine.
Tip: Always check that bottles are upright and spaced evenly before starting the labeling process. This helps prevent jams and keeps the labeling machine running efficiently.
Bottle Positioning
Once bottles enter the labeling machine, the positioning mechanism takes over. The system uses a combination of sensors, clamping devices, and dividing wheels to line up each bottle. The product sensor detects when a bottle arrives, and the clamping device holds it steady. Large silicone wheels and a circumference positioning system keep bottles separated and prevent collisions. The PLC control system allows you to adjust settings for different bottle sizes and shapes. Transparent label sensors and fiber optic sensors provide extra accuracy, making sure every label goes on in the right spot. The vertical trunnion roller system spins bottles gently, helping the round bottle sticker labeling machine achieve high precision with each label application.
Method/Component
Description
Label Sensor
Detects label presence and position for accurate application.
Product Sensor
Detects the bottle to ensure correct label positioning and adjustment.
Clamping Device
Holds the bottle securely to prevent movement during labeling.
Divide Wheel
Evenly spaces bottles for consistent label application intervals.
Large Silicone Wheels
Provide stable bottle separation to avoid collisions and misalignment.
Circumference Positioning
Ensures precise label placement around the bottle circumference.
Adjusting Base
Allows manual adjustment for bottle size and height customization.
PLC Control System
Enables precise speed regulation and operational control.
Optional Sensors
Enhance positioning accuracy for special label types.
Label Application
When a bottle reaches the labeling station, the label application process begins. The label dispenser feeds a label from the roll, and the label sensor checks its position. The round bottle sticker labeling machine uses the product sensor to trigger the label applicator at the exact moment the bottle is in place. The applicator presses the label onto the bottle using rollers, brushes, or air. For bottles with unique shapes, such as tapered or angled surfaces, you may need to use curved or custom-shaped labels. The labeling machine can handle different materials, including plastic, by using static neutralizers and special adhesives. This ensures the label sticks properly, even on flexible or curved surfaces. Automated systems help you achieve consistent label application across all bottle types.
Note: Cleaning the bottle surface before labeling helps prevent bubbles and ensures strong adhesion.
Label Pressing
After the initial label application, the round bottle sticker labeling machine uses a wrap-around pressing belt or rollers to press the label firmly onto the bottle. This step activates the adhesive and creates a strong bond. Flexible rollers made of silicone or rubber apply even pressure, smoothing out wrinkles and pushing out any trapped air. If you use the right pressure, you avoid bubbles and ensure the label stays flat. Squeegees and roll presses can also help with this step, especially for bottles with textured surfaces. Proper label pressing is key to achieving a smooth, professional finish on every bottle.
Even pressure activates adhesive for strong bonding.
Flexible rollers conform to label and bottle shape.
Squeegees and roll presses remove air bubbles and wrinkles.
Correct pressure prevents label damage and ensures smooth application.
Bottle Output
Once the label is pressed and secured, the labeled bottle moves to the output section of the labeling machine. Automated vision systems inspect each bottle for label placement, alignment, and defects. If a bottle has a misaligned or wrinkled label, the ejection system removes it from the line. Mechanical guides and sensors keep bottles upright and spaced correctly as they exit. This prevents damage and maintains the quality of your products. The round bottle sticker labeling machine ensures that only perfectly labeled bottles continue to the next stage of your production process.
Remember: Continuous monitoring and inspection help you maintain high standards and reduce labeling errors.
Setup and Adjustment for Round Bottle Sticker Labeling Machine
Setting up your labeling machine correctly ensures smooth operation and high-quality results. You need to follow a few important steps to get the most out of your round bottle sticker labeling machine. Each step helps you achieve accurate labeling and user-friendly operation.
Calibration
Calibration is the first step in the setup process. You must match the labeling machine settings to your bottle and label sizes. Even a small difference, such as 1mm in bottle size, can affect label placement. You should check the sensors and adjust them so they detect bottles and labels at the right time. Proper calibration helps the labeling machine apply labels with accuracy up to ±0.3 mm. This step also includes setting the label output speed to match the conveyor speed. When you calibrate the machine regularly, you prevent misalignment and keep your labeling process efficient.
Adjusting for Bottle Size
You need to adjust the labeling machine for different bottle sizes to maintain accuracy and speed. Here are some key points:
Small changes in bottle size can impact label placement.
You must set the machine to handle each bottle within the central tolerance range.
Quick and easy adjustments reduce downtime and keep production moving.
Flexible machines let you switch between product runs without losing speed.
Operator skill is important for making precise adjustments.
Features like label tracking and product sensing help maintain accuracy.
User-friendly operation makes these adjustments simple for you.
A labeling machine with flexible adjustment features supports efficient setup and consistent labeling across different products.
Setting Label Position
Setting the label position is a critical part of the setup labeling machine process. You need to:
Adjust the label sensor to control when the label dispenses.
Move the bottle sensor to the correct spot for your machine type.
Set the rollers or clamps to hold the bottle firmly but gently.
Match the label output speed with the conveyor speed.
Use delay functions in the control panel to fine-tune placement.
Check sensor signals and run manual tests to verify label position.
Tip: Always observe the label during application. If you see bubbles or misalignment, adjust the settings right away.
Test Runs
Test runs help you catch problems before full production. Follow these steps:
Run a few bottles through the labeling machine as samples.
Inspect each bottle for label alignment, adhesion, and appearance.
Compare your results to approved samples or prototypes.
Document any defects and share feedback with your team.
Adjust the machine settings if you find issues.
Repeat test runs until you achieve perfect labeling.
Continue routine checks during production to maintain quality.
Test runs ensure your setup is correct and your labeling machine delivers consistent, high-quality results. This process supports user-friendly operation and helps you avoid costly mistakes.
Troubleshooting for Round Bottle Sticker Labeling Machines
When you use round bottle sticker labeling machines, you may face some common issues. Knowing how to troubleshoot these problems helps you keep your labeling machine running smoothly and maintain high quality control. Here are practical solutions for the most frequent challenges.
Label Misalignment
Label misalignment can affect the appearance and quality control of your products. You can solve this issue by checking several key areas:
Adjust the label and product guides to ensure a straight label feed.
Fine-tune the label roll tension for consistent feeding.
Level the labeling machine base with a leveling tool.
Clean the label paths to remove dust or adhesive residue.
Make sure sensors are aligned and calibrated correctly.
Inspect for mechanical wear on rollers and belts.
Keep the product surface clean and dry for better adhesion.
Control temperature and humidity in the labeling area.
Train operators to follow the correct setup steps.
Tip: Regular calibration and preventive maintenance help you avoid misalignment and improve labeling accuracy.
Skipped Labels
If your labeling machine skips labels, you can follow these steps to fix the problem:
Check that the labels are installed correctly on the spool.
Recalibrate the labeling machine after changing label rolls.
Confirm the printer is set to automatic mode.
Inspect the print head for alignment or damage.
Clean or replace label sensors for accurate detection.
Match printer settings to the label size and type.
Use the correct label and ribbon types for your machine.
Allow the printer to cool down during long runs.
You should also make sure the container surface is clean and the adhesive matches the bottle material. Store labels in a dry, room-temperature place to prevent damage.
Bottle Jams
Bottle jams can slow down your labeling process and affect quality control. You can prevent jams in round bottle sticker labeling machines by:
Using automatic bottle splitting and rotary bottle uncramblers for smooth flow.
Adjusting speeds for labeling, conveying, and bottle dividing.
Installing high-quality sensors to detect bottles and labels accurately.
Using electric eyes to position bottles correctly.
Adjusting bottle holding bars for different bottle sizes.
Keeping pressing bars and label holders in good condition.
Note: Stable mechanical design and regular checks help you reduce jams and keep your labeling machine efficient.
Maintenance
Routine maintenance keeps your labeling machine in top shape and supports quality control. Follow these steps:
Clean the labeling machine after each use with mild detergents.
Lubricate moving parts to reduce friction and wear.
Inspect critical components for signs of damage.
Replace worn parts with manufacturer-recommended components.
Schedule regular servicing by qualified technicians.
Plan preventive maintenance based on how often you use the machine.
By following these practices, you extend the life of your round bottle sticker labeling machines and ensure reliable labeling results.
Benefits of Using a Round Bottle Positioning Labeling Machine
Label Accuracy
You can achieve high label accuracy with a round bottle positioning labeling machine. The machine uses sensors and orientation devices to place each label in the exact spot on every bottle. This technology helps you avoid crooked or misplaced labels. When you use a labeling machine, you make sure that important information, like ingredients and safety warnings, appears clearly on every product. The system checks each bottle’s position before applying the label, so you get a neat and professional look every time. This level of accuracy is hard to match with manual labeling.
Speed and Efficiency
A labeling machine increases your production speed and helps you work more efficiently. You do not need to label each bottle by hand. The machine separates and feeds bottles at a steady rate, using features like a single feed screw and spin-in-place design. These features let you label many bottles quickly and with fewer mistakes. When you use an automatic labeling machine, you can finish more products in less time. This process also reduces labor costs and waste from labeling errors. You avoid bottlenecks in your production line and enjoy increased efficiency.
Tip: Automatic labeling machines help you keep up with large orders and tight deadlines.
Here is a quick comparison of labeling methods:
Labeling Method
Production Scale
Speed and Efficiency Impact
Manual Labeling
Small-scale
Slow, labor-intensive, and prone to errors.
Semi-Automatic Labeling
Medium-scale
Faster than manual, but still needs some hand work.
Fully Automatic Labeling
Large-scale
Fastest and most efficient, with consistent results and less labor needed.
Consistency
You get consistent quality when you use a round bottle positioning labeling machine. The machine applies each label the same way, even when you have thousands of bottles to label. This consistency helps your products look professional and meet safety rules. The labeling machine uses wrap-around methods and smoothing devices to make sure every label is flat and free of bubbles. You can trust the machine to deliver the same high standard for every batch. This reliable performance is important for your brand image and for meeting customer expectations.
Remember: Consistent labeling builds trust with your customers and helps your business grow.
You follow a clear process when using a round bottle positioning labeling machine. First, you feed and separate bottles. Next, sensors and motors apply and press labels with precision. Vision systems check each bottle before it moves to the next stage.
You gain faster production and consistent results.
User-friendly controls and quick-change features reduce downtime.
Regular setup and preventive maintenance keep your machine running smoothly and help you avoid costly repairs.This approach gives you reliable, high-quality labeling every time.
FAQ
How do you clean a round bottle positioning labeling machine?
You should turn off the machine first. Use a soft cloth and mild detergent to wipe all surfaces. Clean the sensors and rollers carefully. Remove any label residue. Dry all parts before restarting the machine.
Can you use different bottle sizes with one machine?
Yes, you can adjust the machine for different bottle sizes. Use the control panel to set the right spacing and guides. Always run a test bottle to check the fit before starting full production.
What should you do if labels keep wrinkling?
Check the label applicator pressure. Make sure the bottle surface is clean and dry. Adjust the rollers for even pressure. Use the correct label material for your bottle type. Wrinkle-free labels improve your product’s appearance.
How fast can a round bottle labeling machine work?
Many machines label up to 300 bottles per minute. The speed depends on your bottle size and label type. You can adjust the conveyor speed for your needs. High-speed models help you finish large orders quickly.
Do you need special training to operate the machine?
You do not need advanced training. Most machines have user-friendly controls and clear instructions. You should read the manual and watch a demonstration. Practice with test runs to build confidence.
